RB-8TR

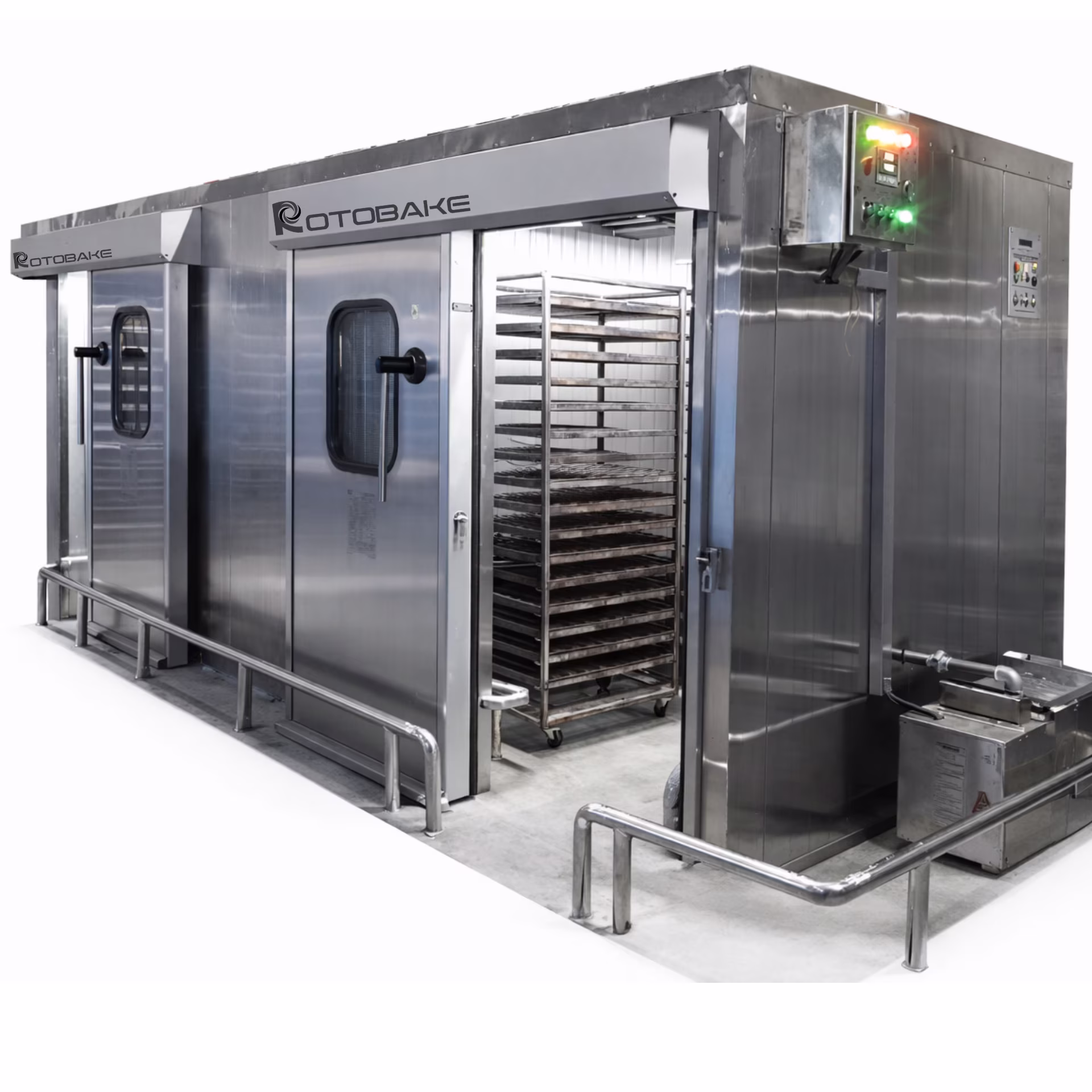

RB-8TR — Eight Trolley Proofer
The RB-8TR Eight Trolley Proofer is RotoBake's eight-trolley, 144-tray proofer, built for mass production bakery lines. It holds 144 trays across 8 trolleys (18 trays per trolley), sized for the standard 13" × 18" tray with custom sizes available on request, with external dimensions of 6000 (W) × 1100 (D) × 2200 (H) mm and internal dimensions of 5800 (W) × 900 (D) × 2000 (H) mm.
Power supply is 12 kW / 415V / 50Hz / Three Phase, driving the Multi-Zone Heating + Industrial Steam Generator to maintain 25°C – 45°C temperature and 70% – 95% RH humidity via PLC-Based Digital Controller with Touch Display. The unit is built in SS 304 stainless steel inside and out, insulated with 75 mm PUF Insulation, and sealed with 8× Full-View Double-Pane Glass Doors.
The RB-8TR weighs approximately 680 kg and ships with RotoBake's 1-year parts & labour warranty. RotoBake has manufactured bakery machinery in New Delhi since 1964 and exports proofers and other bakery equipment to bakeries across the Middle East, South Asia, and Africa.
| Model | RB-8TR |
| Configuration | 8 Trolleys · 144 Trays |
| Tray Size | 13" × 18" (330 × 457 mm) |
| No. of Trays | 18 Trays per Trolley |
| No. of Trolleys | 8 Trolleys |
| External Dims | 6000 (W) × 1100 (D) × 2200 (H) mm |
| Internal Dims | 5800 (W) × 900 (D) × 2000 (H) mm |
| Power Supply | 12 kW / 415V / 50Hz / Three Phase |
| Temp. Range | 25°C – 45°C (Adjustable Digital Control) |
| Humidity Range | 70% – 95% RH (Adjustable) |
| Heating System | Multi-Zone Heating + Industrial Steam Generator |
| Insulation | 75 mm PUF Insulation |
| Body Material | SS 304 Stainless Steel Exterior & Interior |
| Door | 8× Full-View Double-Pane Glass Doors |
| Control System | PLC-Based Digital Controller with Touch Display |
| Net Weight | 680 kg (Approx.) |

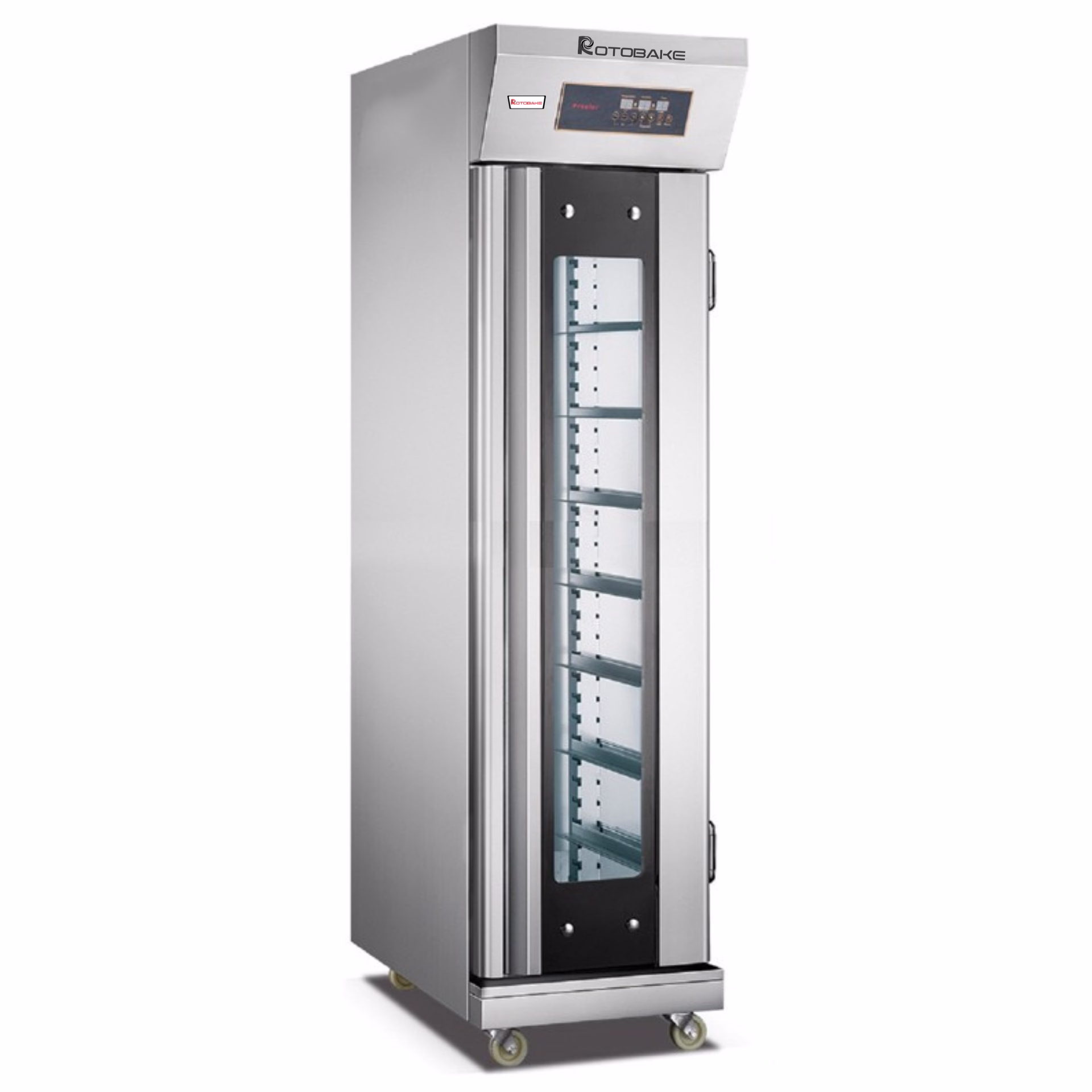

RB-10T

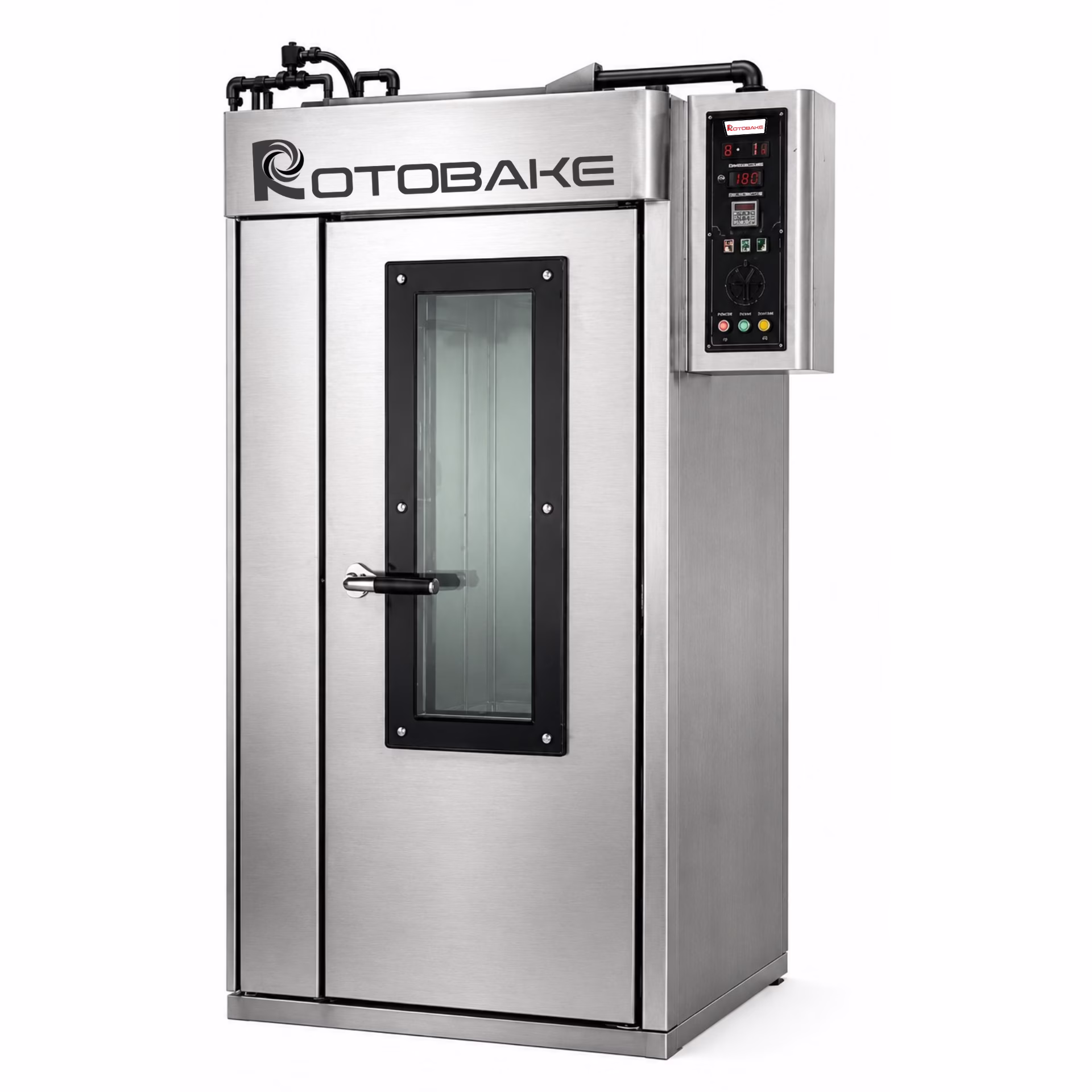

RB-1TR

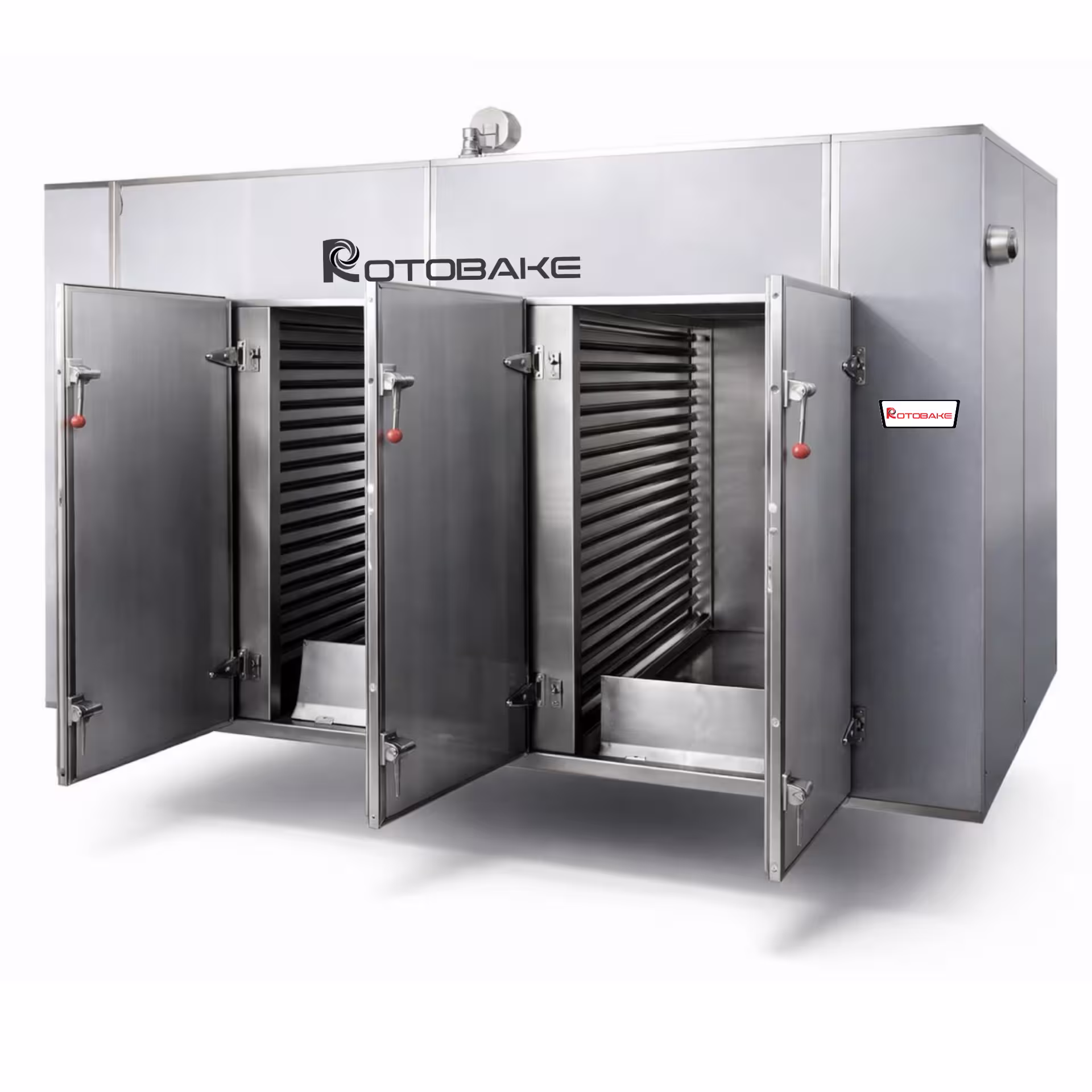

RB-2TR

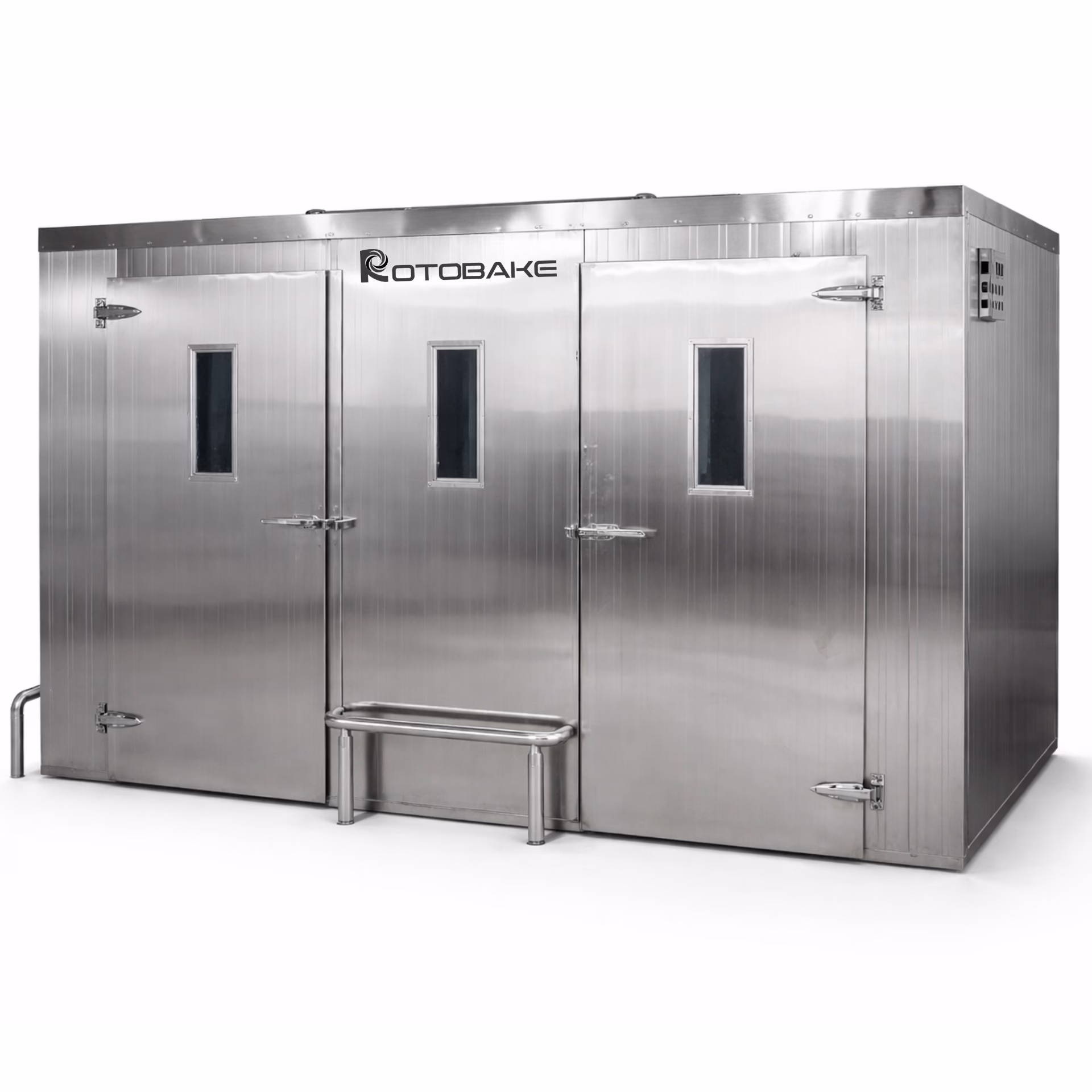

RB-4TR

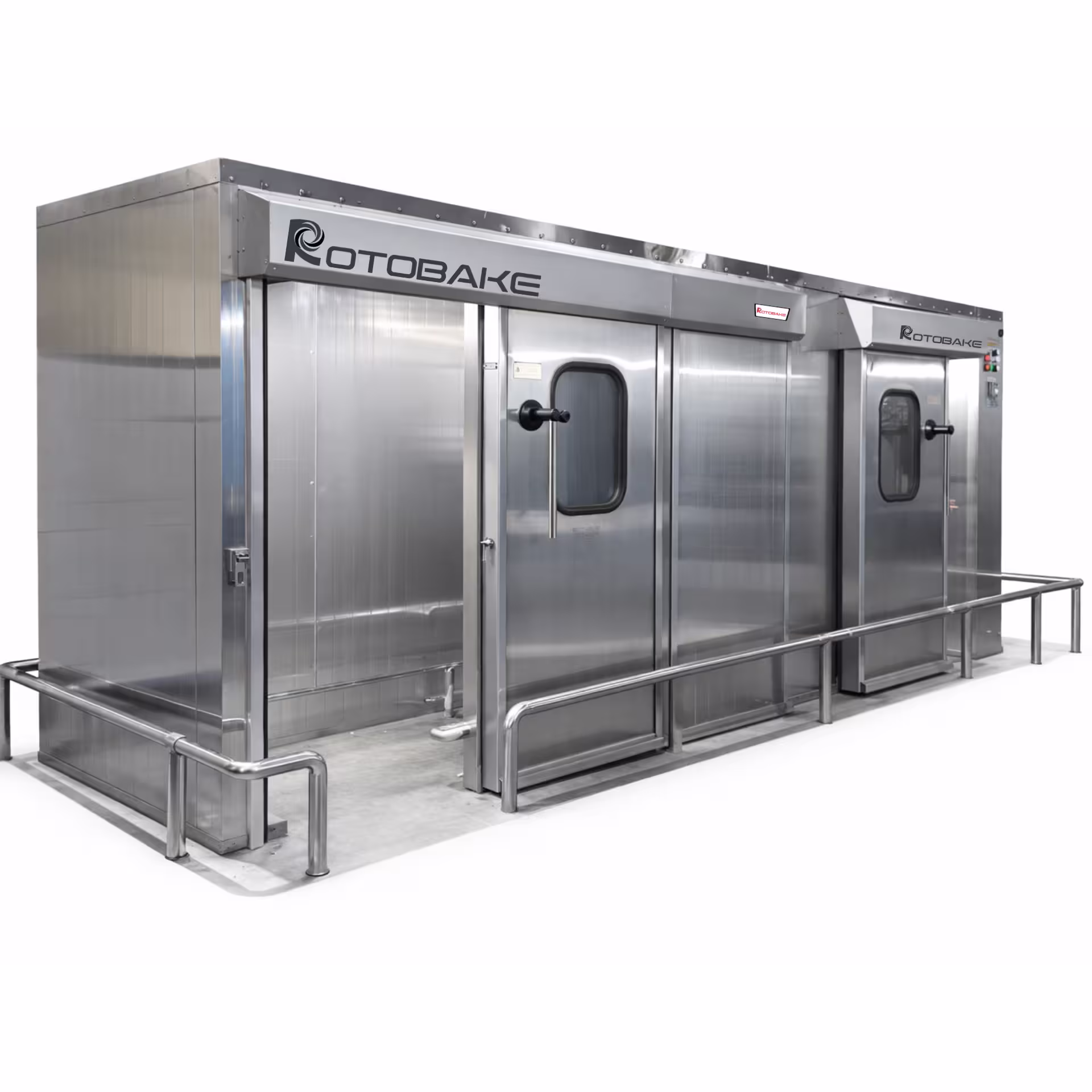

RB-12TR
